KPI-First Probing of the Tuple Correlation Web

From a Misbehaving KPI to an Expanding Investigation

This page describes the procedure for employing the Tuple Correlation Web (TCW) for correlation exploration used to resolve business problems. It begins with Key Performance Indicators (KPI) and progresses through a few stages.

Most business investigations do not begin with an arbitrary pair of measures. They begin when something important is not behaving as intended. Sales falls below target. Inventory turns red. Customer attrition rises. Page-response time approaches an unacceptable level. A KPI has entered pain, and someone wants to know why.

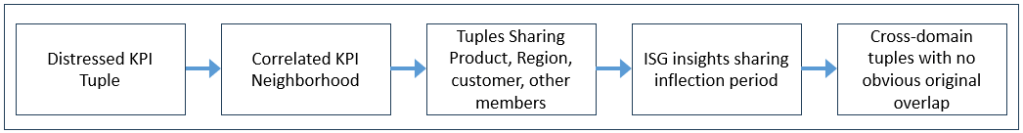

That misbehaving KPI gives us a small, meaningful place to begin. From there, the search can widen in rounds, as shown in Figure 1.

1. Correlate the distressed KPI tuple with other KPI tuples.
2. Expand to ordinary tuples that share informative elements with the strongest KPI relationships.
3. Use the Insight Space Graph (ISG) to find inflections, spikes, clusters, stable measures, and other observations involving those tuples.
4. Use the timing and context of those insights to introduce new tuples, including tuples from domains that did not share obvious elements with the original KPI.

This turns the ISG and TCW into a feedback loop. The ISG can supply tuples to the TCW, but TCW discoveries can also tell us where to search the ISG.

A KPI Status Is a Tuple

A KPI is not just a freestanding number. A KPI value or status is calculated within a dimensional context. For example:

(
Measure = Gross Margin KPI Status,
 Product Category = Bikes,
 Region = Northwest,
 StartDate = 2026-01-01,
 EndDate = 2026-05-31
 )

This is a tuple: a metric qualified by a set of dimensional members. Change one member and it becomes another tuple. Gross Margin Status for Bikes in the Northwest is not the same tuple as Gross Margin Status for Clothing in the Northwest or Bikes in the Southwest.

This qualification is important because the overall corporate Gross Margin KPI might be healthy while the same KPI for one product category and region is deteriorating. The problem often lives below the grand total.

Time does not necessarily need to appear in the displayed tuple. In multidimensional terms, a tuple that omits a hierarchy is a partial tuple. The missing hierarchy is completed by the applicable default or query context. For a time-series calculation, however, the correlation request deliberately evaluates the subject tuple across a sequence of Date members perhaps the last 52 weeks or 24 months.

Each observation therefore has a date even when Date is omitted from the shorthand used to name the subject tuple. The subject tuple identifies what is being measured; the Date axis supplies the repeated observations:

Gross Margin Status for Bikes, Northwest, 2026-01-01, 2026-05-31
    Week 1  -> 0.91
    Week 2  -> 0.88
    Week 3  -> 0.79
    ...
Inventory Status for Bikes, Northwest, 2026-01-01, 2026-05-31
    Week 1  -> 0.86
    Week 2  -> 0.81
    Week 3  -> 0.70
    ...

These sample values use the convention that a higher status is healthier. The two time-aligned series can now be compared. The correlation calculation must specify the date range, grain, and any lag even when Date is not treated as part of the stable identity of either subject tuple.

KPI status is particularly attractive for the first round because it translates measures with different units into a roughly common language of performance. Revenue, inventory availability, response time, and customer retention have incompatible raw units, but their statuses express how each is performing relative to its intended state.

That assumes the status conventions are consistent. If a higher status means healthy for one KPI and pain for another, the values should be normalized before interpreting the sign of a correlation. Historical KPI formulas and targets must also be preserved. We cannot reconstruct last year’s KPI status accurately using only today’s target or today’s version of its formula.

Pain is the Instigator

KPI dashboards are attention systems. Their purpose is to compress a large enterprise into a small set of measures that warn people when something important needs attention. A red or rapidly deteriorating KPI therefore supplies a natural seed tuple for TCW probing.

Suppose the problem instigator is:

(Active Customer Status, Product Category = Bikes, Region = Northwest)

The tuple becomes “lit up” in the terminology of the TCW Probing Protocol. It receives a high probing priority because it represents current pain rather than background curiosity. The system does not yet know why the KPI is in pain. It only knows where to begin looking.

This is a substantial reduction in search space. Instead of asking which relationships among millions of tuples might be interesting, we ask which relationships may help explain one specific condition that currently matters.

Round 1: Correlate KPI Tuples

The first candidate population consists only of KPI tuples. An enterprise might have hundreds or thousands of KPIs when dimensional slices are included, but that is still a small and managed subset of the full tuple space.

For the selected time window and grain, the system retrieves the time series for the distressed KPI tuple and compares it with other KPI-status tuples. Existing TCW edges can be reused when their calculation context is still compatible and fresh. Missing or expired relationships are recalculated on demand.

The first pass might find relationships such as (assume implied date range of 2026-01-01, 2026-05-31):

A strong correlation does not mean one KPI affects another. Pearson correlation is symmetric. It tells us that two status series move together or in opposition, not which one is the cause. Directional evidence may later come from time lags, known strategy-map relationships, formula lineage, events, Markov models, domain knowledge, or explicit rules.

Even so, the first round is valuable. It produces a small neighborhood of KPI states that appear to participate in the same business disturbance. It also provides negative evidence. A fulfillment KPI that remains healthy while customer and revenue KPIs decline makes some operational explanations less likely.

When possible, it is worth testing both status-to-status and value-to-value relationships. Status is semantically richer because it incorporates goals and tolerances. Raw values provide a check against correlations accidentally introduced by similar target formulas, shared thresholds, or normalization rules.

Pearson can serve as the inexpensive first scout. Spearman, lagged correlation, nonlinear tests, or regime-specific analysis can follow when the simpler relationship is weak, suspicious, or structurally incomplete. This follows the layered approach described in Chains of Unstable Correlations: inexpensive methods narrow the population before more expensive investigations begin.

Round 2: Expand Through Shared Tuple Elements

After the first KPI relationships have been found, the probe can move beyond KPIs. The next candidates are ordinary business tuples that share elements with the distressed KPI or with one of its strongly correlated KPI neighbors.

For example, suppose the KPI neighborhood includes these tuples (assume implied date range of 2026-01-01, 2026-05-31):

(Active Customer Status, Bikes, Northwest)
(Revenue Status, Bikes, Northwest)
(Paid Search Efficiency Status, Bikes, Northwest)

Candidate ordinary tuples might include:

(Active Customer Count, Bikes, Northwest)
(Gross Margin, Bikes, Northwest)
(Paid Search CPC, Bikes, Northwest)
(Product Return Rate, Bikes, Southwest)
(Support Escalations, Northwest)
(Competitor Search Count, Northwest)

The first three share both Bikes and Northwest. The next three share only one member. That provides a sensible order in which to calculate missing or stale correlations.

The number of shared members is not itself evidence of correlation. It is a candidate-ranking signal—a prior reason to spend compute testing the relationship. Two tuples sharing several members can be completely uncorrelated, while two tuples from distant domains can be tightly coupled. The TCW exists partly to discover those distant and unexpected relationships.

Nor should every shared member carry the same weight. Product Category = Bikes may be highly informative. All Products, All Customers, or a date range used throughout the enterprise is not. A simple affinity score can therefore weight shared members by specificity:

TupleAffinity(A, B) = sum of weight(m)
                      for each informative member m shared by A and B

The weights could consider:

• Whether the members are exactly the same governed member in the semantic layer or merely have similar labels.
• How frequently the member occurs among candidate tuples.
• Whether the member is a specific leaf-level value or an All/default member.
• Whether the dimension is germane to the seed problem.
• Whether the relationship crosses domains and therefore adds a new analytical perspective.

This resembles the inverse-frequency idea used in information retrieval: a member appearing almost everywhere tells us little, while a rare, specific shared member substantially narrows the context.

Formula and data lineage should also be checked. If two measures are constructed from the same base measure, their high correlation may be a known arithmetic dependency rather than a new empirical discovery. That relationship is still worth representing, but it should be labeled differently. The KPI Status Relationship Graph provides the precedent: common formula elements explain structural relationships among KPIs, while correlations measure how their observed values behave together over time.

The Immense Value of a Pre-Aggregated Semantic Layer

The staged protocol reduces the number of candidate pairs. A pre-aggregated semantic layer, such as what is provided by Kyvos Insights, reduces the cost of testing each surviving pair. This is the division of labor described in The Role of OLAP Cubes in Enterprise Intelligence: the semantic layer makes dimensional retrieval fast enough for the graph to materialize and reconstruct selected analytical relationships as needed.

Most of the expensive work is not the Pearson formula. It is retrieving and aggregating the underlying facts into two aligned time series. Once the semantic layer returns 52 weekly observations for each tuple, calculating Pearson or Spearman is minor work. The problem becomes manageable when both sides are addressed:

1. Probe only candidates that currently have a reason to be examined.
2. Retrieve their aggregated histories from a system designed for fast dimensional slicing and dicing.

Pre-aggregation does not magically remove the combinatorial growth of all possible pairwise correlations. It makes selected correlations inexpensive enough to calculate on demand. This permits the TCW to behave more like a cache than a permanently completed graph. Strong and currently valuable edges remain materialized. Weak, old, or rarely used edges can expire because they can be reconstructed with relatively little penalty.

A cached correlation edge needs enough context to determine whether it can safely be reused:

Freshness cannot be represented by last calculated alone. A correlation calculated yesterday over ten years of monthly data may still be inappropriate for a problem that emerged during the last six weeks. Compatibility of window, grain, lag, and tuple context matters as much as age.

Round 3: Ask the Insight Space Graph What Happened

A TCW edge says that two qualified measures moved together over a specified period. It does not explain when the meaningful movement occurred, what shape it took, or what else analysts saw around it. This is where the Insight Space Graph becomes the next investigative surface.

The tuples on a promising TCW path can be used to find ISG QueryDef nodes involving the same metrics, members, columns, and time periods. The associated insights may include:

• An inflection where a series moved to a different level and remained there.
• A spike or drop associated with a short-lived event.
• A trend that began before the distressed KPI crossed its threshold.
• A measure that remained stable, providing negative evidence.
• A cluster suggesting that the population contains two different operating conditions.
• A breakpoint or regime change indicating that one global correlation conceals multiple local relationships.
• A composition or ranking change that is not visible in the two time series alone.

Suppose Active Customer Status and Competitor Search Count are strongly inversely correlated. The ISG might show that both series contain inflections during the week of March 16. Other QueryDefs from that period might show:

• Revenue and customer count began declining.
• Average revenue per remaining customer stayed stable.
• Paid search cost rose sharply.
• A previously insignificant search term entered the top rankings.
• Price, fulfillment time, and support response remained stable.

The correlation identifies a neighborhood. The insights give that neighborhood shape. Inflections are especially valuable because they narrow a long correlation window to a possible boundary where something changed. The Insight Function Array makes these shapes queryable by preserving detected observations together with the QueryDef context that produced them.

Round 4: Let Time Open a Cross-Domain Search

This also produces a new kind of shared element: time. The original tuples may share no customer, product, location, or organizational dimension. But if they changed sharply during the same narrow period, the common inflection window becomes a reason to examine them together.

That is how the investigation can jump across domains without beginning with a blind enterprise-wide cross-join.

The ISG and TCW Form a Feedback Loop

The usual description of their relationship begins with BI activity. Analysts issue queries, the IFA detects noteworthy features in the resulting dataframes, and those findings are stored in the ISG. Tuples emphasized by the queries and insights become candidates for correlation in the TCW.

That remains true, but it is only half of the interaction.

Once a TCW path becomes relevant, its tuples can be used to search the ISG for prior analytical observations. Those observations can expose inflection dates, overlooked dimensions, candidate confounders, negative evidence, and other tuples. The newly discovered tuples are then sent back to the TCW for another round of correlation testing.

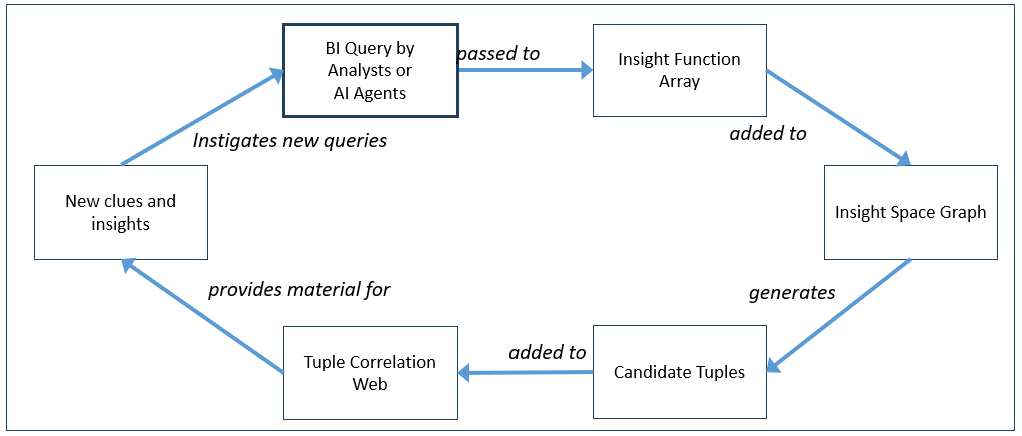

The loop is illustrated in Figure 2:

The process is exploratory without being indiscriminate. Each round is justified by evidence found in the prior round.

A Concrete Probing Procedure

The KPI-first extension can be summarized as the following procedure:

1. Select the seed tuple. A KPI status crosses a pain threshold, deteriorates unusually quickly, or otherwise demands attention. Preserve its complete dimensional qualification.
2. Choose the comparison context. Specify the date window, time grain, acceptable missing-data behavior, and initial correlation method.
3. Probe the KPI neighborhood. Correlate the seed against compatible KPI-status tuples. Reuse only edges calculated with compatible context and sufficiently current model versions.
4. Validate promising KPI relationships. Compare raw values as well as statuses when possible. Examine negative correlations, lags, sample size, and obvious formula dependencies.
5. Rank shared-member candidates. Gather non-KPI tuples sharing informative members with the seed and its strongest KPI neighbors. Weight specific members more heavily than ubiquitous defaults.
6. Calculate missing or stale correlations. Retrieve aligned time series from the pre-aggregated semantic layer and materialize only the relationships that meet retention criteria.
7. Search the ISG. Find QueryDefs and insights involving the correlated tuples. Pay particular attention to coincident or ordered inflections, spikes, stability, clusters, and regime changes.
8. Promote time-local clues. Treat a shared inflection period as a temporary investigative anchor. Find other insights and tuples active during that period even when they do not share the original dimensional members.
9. Repeat with a wider neighborhood. Submit the new tuples to the TCW while retaining the original problem context and a path back to the distressed KPI.
10. Escalate the surviving paths. Present the strongest, most coherent chains as hypothesis material for analysts, subject-matter experts, System 1 functions, or System 2 reasoning.

The result is not a declaration of cause. It is an evidence-ranked map of where to investigate next.

Guardrails

The staged search makes the TCW more tractable, but it does not make correlation safe from careless interpretation.

Align the series

Two tuples should be compared at compatible grains and over meaningful overlapping windows. A daily operational KPI and a quarterly financial KPI cannot be correlated merely by placing their available values into two arrays. Missing periods, late-arriving facts, and differences in business calendars must be handled explicitly.

Preserve KPI history

KPI targets, tolerances, formulas, and dimensional definitions change. Historical statuses must either be stored as facts or reproducible from versioned definitions. Otherwise, recalculation silently applies today’s intentions to yesterday’s conditions.

Distinguish discovery from arithmetic

Two KPIs may correlate because one formula includes the other. That is a structural dependency, not an independently discovered relationship. The Data Catalog and formula lineage should label it accordingly.

Control repeated testing

Even a narrowed candidate population can produce coincidental high correlations. Sample size, repeated-testing controls, holdout periods, persistence, and validation across alternative windows should influence whether an edge is retained or promoted.

Do not stop at Pearson

Relationships can contain lags, thresholds, multiple regimes, and reversals that collapse into an unimpressive global Pearson score. Pearson is a good inexpensive scout, not the final judge.

Do not remain trapped among shared members

Shared tuple elements provide an efficient second round, but the most valuable TCW discovery may connect domains with no obvious dimensional overlap. The ISG’s inflection dates, semantic links, analyst activity, embeddings, and wider probing mechanisms provide the bridges into that territory.

What This Adds to the TCW Probing Protocol

The original TCW Probing Protocol explains why the entire correlation space cannot be materialized and identifies the signals that should receive attention. This extension adds a repeatable traversal order:

1. Pain first.
2. Then the other KPIs.
3. Then nearby tuples sharing business context.
4. Then the ISG observations surrounding the strongest relationships.
5. Then outward through the time and meaning exposed by those observations.

Starting with KPIs is not merely a computational optimization. KPIs express what the enterprise has already decided matters. Their status functions translate raw measures into the distance between what is happening and what was intended. When one enters pain, it supplies both a reason to investigate and a qualified coordinate from which the investigation can begin.

Shared tuple members keep the early search close to that coordinate. Correlations determine which of those nearby possibilities have empirical support. ISG insights reveal where the behavior changed and what else was visible around that change. Those discoveries then provide the next set of coordinates.

The web grows where the enterprise is feeling something.

Pruning

Tuple correlations do not all need to remain in the hot TCW indefinitely. Pruning can move them to cold storage based on time-to-live, use count, time since last use, correlation strength, current investigative relevance, or the cost of recalculating them. Pruning is therefore not necessarily deletion. It removes a tuple or correlation from the active working graph while preserving enough information to recover it.

Date ranges can also be divided between storage tiers. For example, an older closed range such as [Begin of Time, 2025-12-31] might be archived while [2026-01-01, Today] remains hot. The older aggregated series, correlation state, and calculation provenance can be retrieved when an investigation requests the longer range.

A structure similar to a Data Vault Point-in-Time (PIT) table could support this. A PIT-like TCW structure would record the tuple or correlation identifier, date range, as-of date, formula and semantic-model versions, storage tier, and the location of the corresponding artifact. It would act as a small temporal index into the hot and cold portions of the TCW. This follows the Data Vault use of a PIT table to locate the historical records applicable at a particular point in time.

When an archived relationship becomes relevant again, the TCW can rehydrate it. If the archived calculation has the required date range, grain, method, and formula versions, it can be reused. Otherwise, the pre-aggregated semantic layer can recalculate it. In this way, pruning keeps the active TCW manageable without forcing the enterprise to forget relationships it has already observed.
